BS-A48

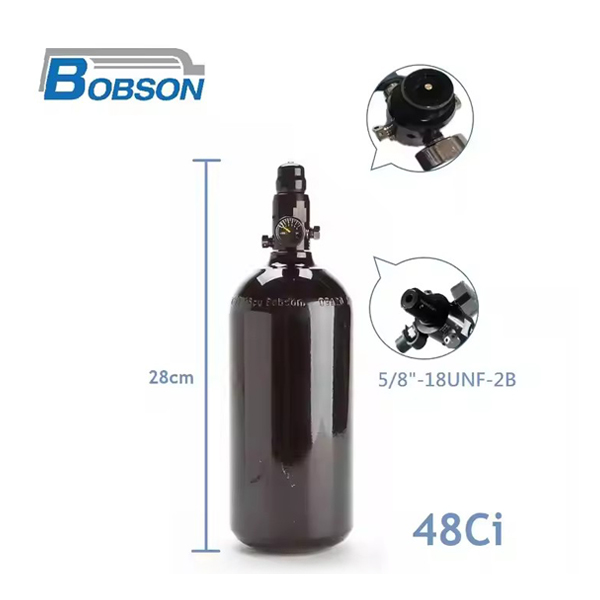

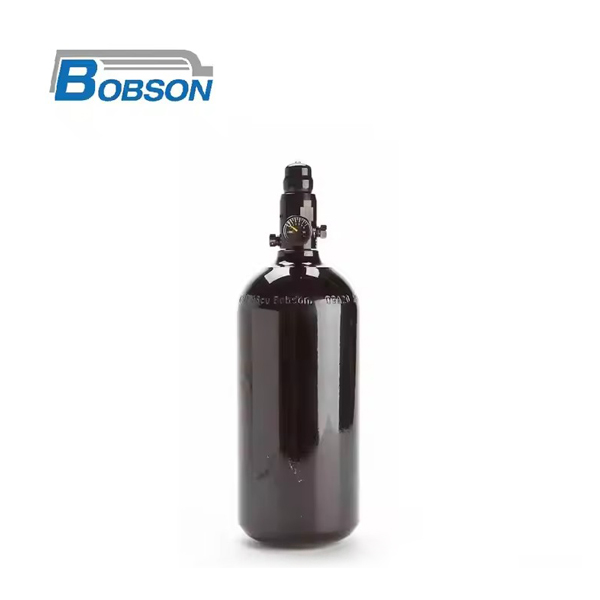

RHO UK certified 790ml (48CI) high-pressure aluminum gas cylinder, rated for 3000 PSI, designed for industrial applications. Made from durable, lightweight aluminum, this refillable cylinder ensures reliable performance in high-pressure environments. Ideal for use in industrial gas systems, pneumatic equipment, and other applications requiring efficient and consistent high-pressure gas storage.

Inquiry

Products Name	Aluminum Cylinder
Material	Aluminum
Use	High Pressure Air (HPA)
Place of Origin	Taiwan
Pressure	High-Pressure
Model Number	BS-A48
Size	790ml
Brand Name	BOBSON

DOT-3AL / TPED Approval High Pressure
Item	Service Pressure		Water Capacity	Outside diameter	Overall Length	Thread specifications	Material	DOT	TPED	RHO
Item	psi	bar	L	mm	mm	Thread specifications	Material	DOT	TPED	RHO
BS-B4-C2	3000	207	0.098	50	100.5	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B4	3000	207	0.13	50	128	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B5	3000	207	0.18	50	150	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B6	3000	207	0.19	50	180	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B6-1	3000	207	0.18	50.5	165	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B13	3000	207	0.22	50.5	188	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B10	3000	207	0.29	50.5	235	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B22	3000	207	0.36	50.5	290	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B28	3000	207	0.46	50.5	358	5/8"-18UNF-2B	Aluminum	V	V	V
BS-AH10	3000	207	0.36	63.8	200	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12	3000	207	0.5	63.8	260	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12-26	3001	207	0.43	63.8	250	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12-60	3000	207	0.5	60	295	5/8"-18UNF-2B	Aluminum	V	X	X
BS-A26	3000	207	0.43	91.2	140	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A38	3000	207	0.62	91.2	180	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A48	3000	207	0.79	91.2	215	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A62	3000	207	1.016	91.2	260	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B10-1 (Round)	3000	207	0.29	50.5	240	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-B22-1 (Round)	3000	207	0.36	50.5	290	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-B28-1 (Round)	3000	207	0.46	50.5	358	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-AH12-60-1 (Round)	3000	207	0.5	60	295	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
