BS-B28 HPA Aluminum Cylinder

Name: BS-B28
Brand: Bobson Enterprise Co., Ltd.
SKU: null

Product Categories

Products

BS-B28

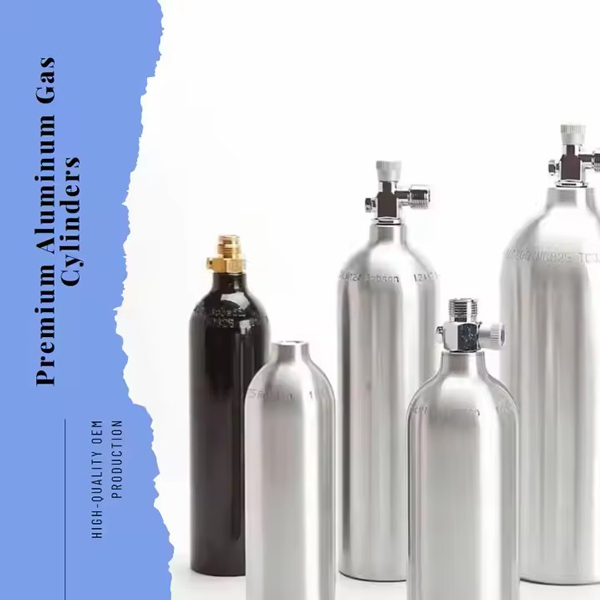

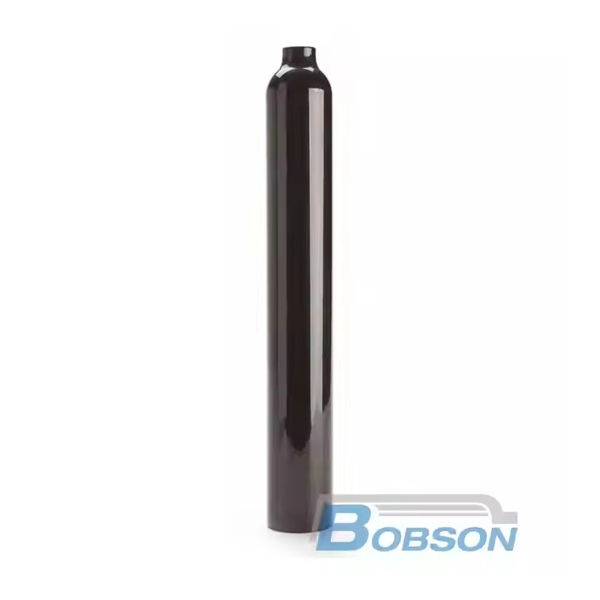

RHO certified 460ml (28CI) high-pressure aluminum gas cylinder, rated for 3000 PSI, designed for industrial applications. Made from durable, lightweight aluminum, this refillable cylinder provides reliable performance in high-pressure environments. Ideal for use in industrial gas systems, pneumatic equipment, and other applications requiring consistent and efficient gas storage.

Inquiry

Products Name	Aluminum Cylinder
Material	Aluminum
Use	High Pressure Air (HPA)
Place of Origin	Taiwan
Pressure	High-Pressure
Model Number	BS-B28
Size	460ml
Brand Name	BOBSON

DOT-3AL / TPED Approval High Pressure
Item	Service Pressure		Water Capacity	Outside diameter	Overall Length	Thread specifications	Material	DOT	TPED	RHO
Item	psi	bar	L	mm	mm	Thread specifications	Material	DOT	TPED	RHO
BS-B4-C2	3000	207	0.098	50	100.5	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B4	3000	207	0.13	50	128	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B5	3000	207	0.18	50	150	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B6	3000	207	0.19	50	180	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B6-1	3000	207	0.18	50.5	165	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B13	3000	207	0.22	50.5	188	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B10	3000	207	0.29	50.5	235	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B22	3000	207	0.36	50.5	290	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B28	3000	207	0.46	50.5	358	5/8"-18UNF-2B	Aluminum	V	V	V
BS-AH10	3000	207	0.36	63.8	200	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12	3000	207	0.5	63.8	260	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12-26	3001	207	0.43	63.8	250	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12-60	3000	207	0.5	60	295	5/8"-18UNF-2B	Aluminum	V	X	X
BS-A26	3000	207	0.43	91.2	140	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A38	3000	207	0.62	91.2	180	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A48	3000	207	0.79	91.2	215	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A62	3000	207	1.016	91.2	260	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B10-1 (Round)	3000	207	0.29	50.5	240	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-B22-1 (Round)	3000	207	0.36	50.5	290	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-B28-1 (Round)	3000	207	0.46	50.5	358	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-AH12-60-1 (Round)	3000	207	0.5	60	295	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
