BS-AH12 HPA Aluminum Cylinder

Name: BS-AH12
Brand: Bobson Enterprise Co., Ltd.
SKU: null

Product Categories

Products

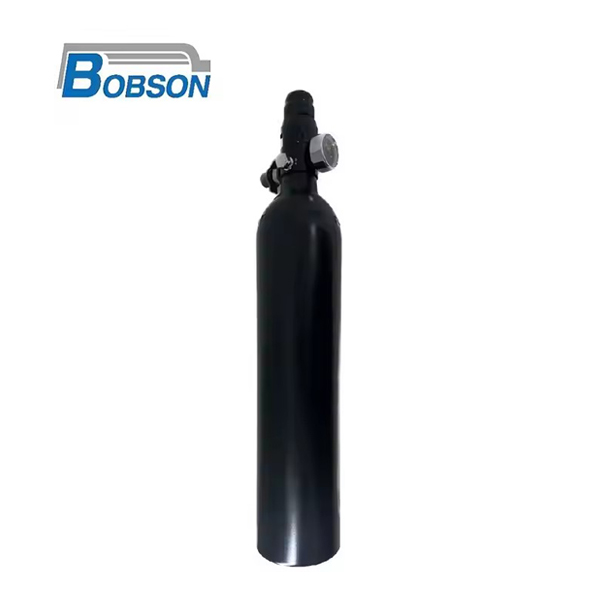

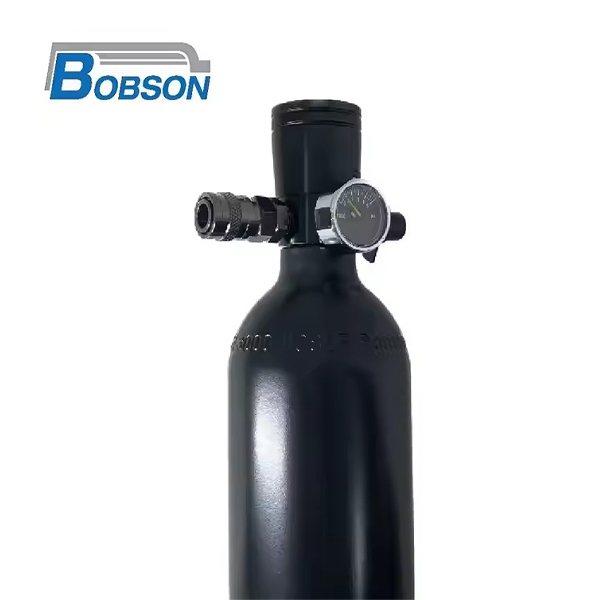

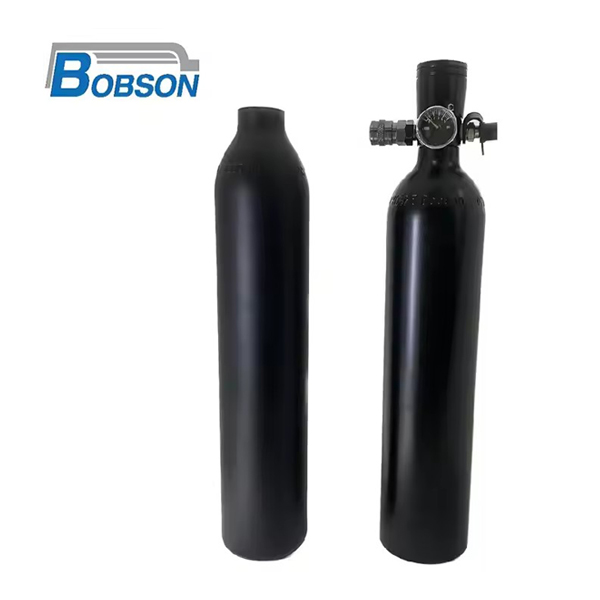

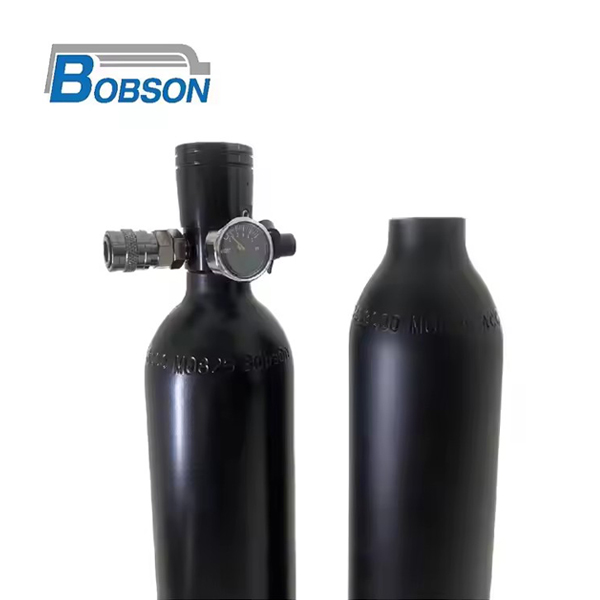

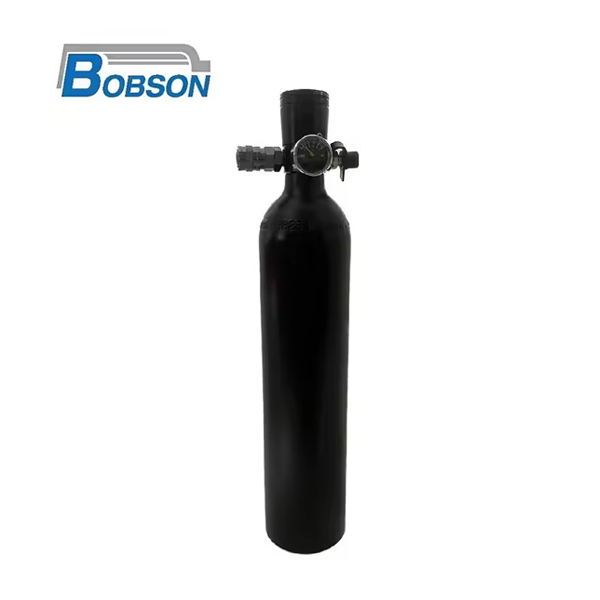

BS-AH12 High Pressure Air (HPA) Cylinder

BS-AH12

The 500ml (31CI) high-pressure aluminum air cylinder, rated for 3000 psi, is designed for industrial applications requiring efficient gas storage. Constructed from durable, lightweight aluminum, this refillable tank ensures reliable performance in high-pressure environments. Its compact size and robust design make it suitable for various industrial systems that demand consistent and efficient gas storage solutions.

Inquiry

Products Name	Aluminum Cylinder
Material	Aluminum
Use	High Pressure Air (HPA)
Place of Origin	Taiwan
Pressure	High-Pressure
Model Number	BS-AH12
Size	500ml
Brand Name	BOBSON

DOT-3AL / TPED Approval High Pressure
Item	Service Pressure		Water Capacity	Outside diameter	Overall Length	Thread specifications	Material	DOT	TPED	RHO
Item	psi	bar	L	mm	mm	Thread specifications	Material	DOT	TPED	RHO
BS-B4-C2	3000	207	0.098	50	100.5	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B4	3000	207	0.13	50	128	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B5	3000	207	0.18	50	150	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B6	3000	207	0.19	50	180	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B6-1	3000	207	0.18	50.5	165	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B13	3000	207	0.22	50.5	188	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B10	3000	207	0.29	50.5	235	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B22	3000	207	0.36	50.5	290	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B28	3000	207	0.46	50.5	358	5/8"-18UNF-2B	Aluminum	V	V	V
BS-AH10	3000	207	0.36	63.8	200	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12	3000	207	0.5	63.8	260	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12-26	3001	207	0.43	63.8	250	5/8"-18UNF-2B	Aluminum	V	X	X
BS-AH12-60	3000	207	0.5	60	295	5/8"-18UNF-2B	Aluminum	V	X	X
BS-A26	3000	207	0.43	91.2	140	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A38	3000	207	0.62	91.2	180	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A48	3000	207	0.79	91.2	215	5/8"-18UNF-2B	Aluminum	V	V	V
BS-A62	3000	207	1.016	91.2	260	5/8"-18UNF-2B	Aluminum	V	V	V
BS-B10-1 (Round)	3000	207	0.29	50.5	240	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-B22-1 (Round)	3000	207	0.36	50.5	290	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-B28-1 (Round)	3000	207	0.46	50.5	358	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
BS-AH12-60-1 (Round)	3000	207	0.5	60	295	5/8"-18UNF-2B/ M18*1.5UNF	Aluminum	V	X	X
