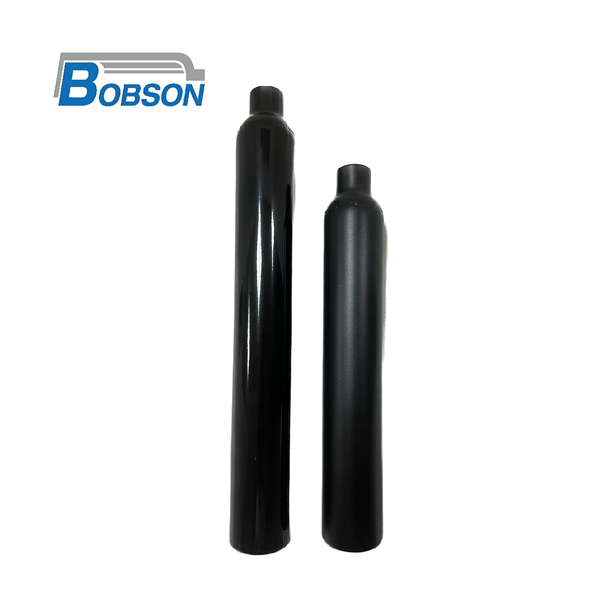

BS-B24-45P

Manufactured from high-strength seamless 6061-T6 aluminum, the BS-B24-45P is rated for 4500 PSI working pressure. Certified to DOT-3AL, TPED, and UK standards, it offers excellent durability and corrosion resistance. Ideal for compressed air, nitrogen, and CO₂ applications, this cylinder is widely used in PCP airguns, SCBA systems, fire safety gear, and laboratory gas storage.

Inquiry

Products Name	Aluminum Cylinder
Material	Aluminum
Use	4500PSI/painball
Place of Origin	Taiwan
Pressure	High-Pressure
Model Number	BS-B24-45P
Size	395ml
Brand Name	BOBSON

Product	Item	Service Pressure		Water Capacity		Outside diameter		Overall Length		Empty Weight		Thread specifications	DOT	TPED	RHO
Product	Item	psi	bar	ci	cc	in	mm	in	mm	lbs	kq	Thread specifications	DOT	TPED	RHO
B15.7	BS-B15.7-45P	4500	310	16	257	2.0	50	9.8	250	1.15	0.52	5/8H-18UNF-2B	V	X	X
B18.6	BS-B18.6-45P	4500	310	19	305	2.0	50	12.0	305	1.4	0.64	5/8H-18UNF-2B	V	X	X
B24	BS-B24-45P	4500	310	24	395	2.0	50	14.7	373	1.7	0.779	5/8"-18UNF-2B	V	X	X
